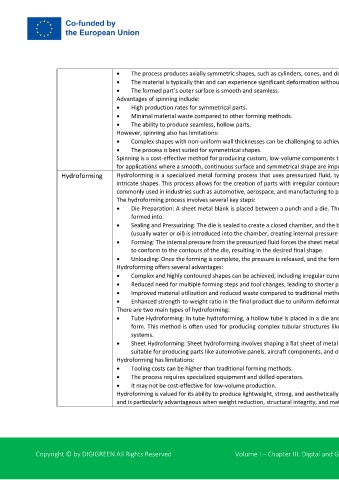

• The process produces axially symmetric shapes, such as cylinders, cones, and domes.
• The material is typically thin and can experience significant deformation without material failure.
• The formed part's outer surface is smooth and seamless.
Advantages of spinning include:
• High production rates for symmetrical parts.
• Minimal material waste compared to other forming methods.
• The ability to produce seamless, hollow parts.
However, spinning also has limitations:
• Complex shapes with non-uniform wall thicknesses can be challenging to achieve.
• The process is best suited for symmetrical shapes.
Spinning is a cost-effective method for producing custom, low-volume components that require precision and aesthetics. It is particularly valuable
for applications where a smooth, continuous surface and symmetrical shape are important design factors.
Hydroforming Hydroforming is a specialized metal forming process that uses pressurized fluid, typically water or oil, to shape sheet metal into complex and
intricate shapes. This process allows for the creation of parts with irregular contours, sharp bends, and varying wall thicknesses. Hydroforming is
commonly used in industries such as automotive, aerospace, and manufacturing to produce lightweight and structurally efficient components.
The hydroforming process involves several key steps:
• Die Preparation: A sheet metal blank is placed between a punch and a die. The die has the desired shape or contour that the metal will be
formed into.
• Sealing and Pressurizing: The die is sealed to create a closed chamber, and the blank is clamped between the punch and die. Pressurized fluid
(usually water or oil) is introduced into the chamber, creating internal pressure against the blank.
• Forming: The internal pressure from the pressurized fluid forces the sheet metal to take on the shape of the die. The metal flows and stretches
to conform to the contours of the die, resulting in the desired final shape.
• Unloading: Once the forming is complete, the pressure is released, and the formed part is removed from the die. (Source of image:
Hydroforming offers several advantages: https://www.electropneumatics.com/
• Complex and highly contoured shapes can be achieved, including irregular curves and varying wall thicknesses. component-division.php)
• Reduced need for multiple forming steps and tool changes, leading to shorter production times.
• Improved material utilization and reduced waste compared to traditional methods.
• Enhanced strength-to-weight ratio in the final product due to uniform deformation.
There are two main types of hydroforming:
• Tube Hydroforming: In tube hydroforming, a hollow tube is placed in a die and pressurized fluid is used to shape the tube into the desired
form. This method is often used for producing complex tubular structures like bike frames, automotive chassis components, and exhaust
systems.
• Sheet Hydroforming: Sheet hydroforming involves shaping a flat sheet of metal into a complex part by using pressurized fluid. This method is
suitable for producing parts like automotive panels, aircraft components, and other intricate structures.
Hydroforming has limitations:
• Tooling costs can be higher than traditional forming methods.
• The process requires specialized equipment and skilled operators.
• It may not be cost-effective for low-volume production.
Hydroforming is valued for its ability to produce lightweight, strong, and aesthetically pleasing parts with complex shapes. It offers design flexibility
and is particularly advantageous when weight reduction, structural integrity, and material efficiency are important considerations.
