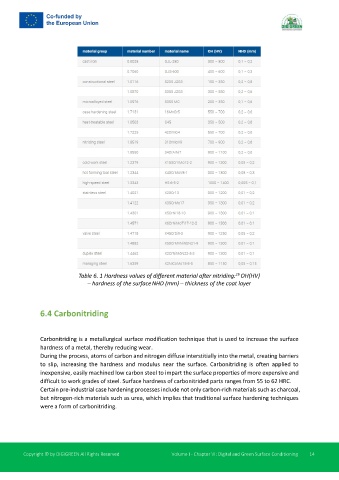

Page 14 - Vol_1_Chapter_VI

16
Table 6. 1 Hardness values of different material after nitriding: OH(HV)

– hardness of the surfaceNHD (mm) – thickness of the coat layer

6.4 Carbonitriding

Carbonitriding is a metallurgical surface modification technique that is used to increase the surface
hardness of a metal, thereby reducing wear.
During the process, atoms of carbon and nitrogen diffuse interstitially into the metal, creating barriers
to slip, increasing the hardness and modulus near the surface. Carbonitriding is often applied to
inexpensive, easily machined low carbon steel to impart the surface properties of more expensive and
difficult to work grades of steel. Surface hardness of carbonitrided parts ranges from 55 to 62 HRC.
Certain pre-industrial case hardening processes include not only carbon-rich materials such as charcoal,
but nitrogen-rich materials such as urea, which implies that traditional surface hardening techniques
were a form of carbonitriding.

Copyright © by DIGIGREEN All Rights Reserved Volume I - Chapter VI: Digital and Green Surface Conditioning 14
