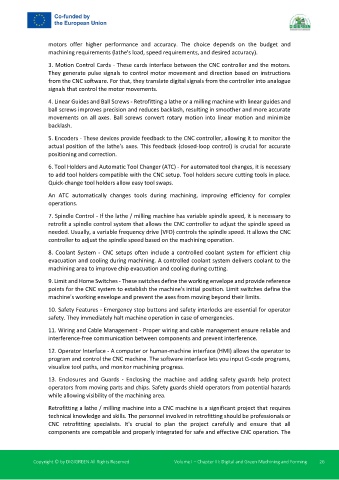

motors offer higher performance and accuracy. The choice depends on the budget and
machining requirements (lathe's load, speed requirements, and desired accuracy).

3. Motion Control Cards - These cards interface between the CNC controller and the motors.
They generate pulse signals to control motor movement and direction based on instructions
from the CNC software. For that, they translate digital signals from the controller into analogue
signals that control the motor movements.

4. Linear Guides and Ball Screws - Retrofitting a lathe or a milling machine with linear guides and
ball screws improves precision and reduces backlash, resulting in smoother and more accurate
movements on all axes. Ball screws convert rotary motion into linear motion and minimize
backlash.

5. Encoders - These devices provide feedback to the CNC controller, allowing it to monitor the
actual position of the lathe's axes. This feedback (closed-loop control) is crucial for accurate
positioning and correction.

6. Tool Holders and Automatic Tool Changer (ATC) - For automated tool changes, it is necessary
to add tool holders compatible with the CNC setup. Tool holders secure cutting tools in place.
Quick-change tool holders allow easy tool swaps.
An ATC automatically changes tools during machining, improving efficiency for complex
operations.

7. Spindle Control - If the lathe / milling machine has variable spindle speed, it is necessary to
retrofit a spindle control system that allows the CNC controller to adjust the spindle speed as
needed. Usually, a variable frequency drive (VFD) controls the spindle speed. It allows the CNC
controller to adjust the spindle speed based on the machining operation.

8. Coolant System - CNC setups often include a controlled coolant system for efficient chip
evacuation and cooling during machining. A controlled coolant system delivers coolant to the
machining area to improve chip evacuation and cooling during cutting.

9. Limit and Home Switches - These switches define the working envelope and provide reference
points for the CNC system to establish the machine's initial position. Limit switches define the
machine's working envelope and prevent the axes from moving beyond their limits.

10. Safety Features - Emergency stop buttons and safety interlocks are essential for operator
safety. They immediately halt machine operation in case of emergencies.

11. Wiring and Cable Management - Proper wiring and cable management ensure reliable and
interference-free communication between components and prevent interference.
12. Operator Interface - A computer or human-machine interface (HMI) allows the operator to
program and control the CNC machine. The software interface lets you input G-code programs,
visualize tool paths, and monitor machining progress.

13. Enclosures and Guards - Enclosing the machine and adding safety guards help protect
operators from moving parts and chips. Safety guards shield operators from potential hazards
while allowing visibility of the machining area.

Retrofitting a lathe / milling machine into a CNC machine is a significant project that requires
technical knowledge and skills. The personnel involved in retrofitting should be professionals or
CNC retrofitting specialists. It's crucial to plan the project carefully and ensure that all
components are compatible and properly integrated for safe and effective CNC operation. The
