Chemical machining finds applications in various industries, including aerospace, electronics, and automotive. It is used to produce components
such as thin metal sheets, electronic circuit boards, turbine blades, and fuel injector nozzles, where precise and controlled material removal is
critical.
It's important to note that advances in technology have led to variations of chemical machining, such as photochemical machining (PCM) and
electrochemical machining (ECM), which use light exposure or electrical currents, respectively, to enhance the precision and control of the material
removal process.

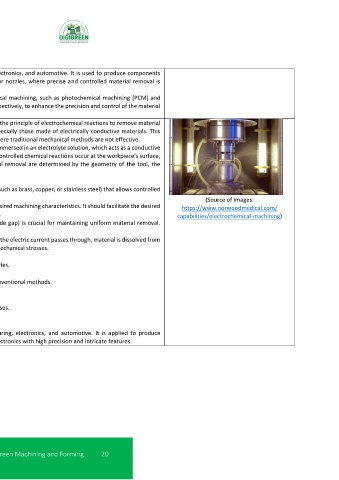

Electrochemical Electrochemical Machining (ECM) is a non-traditional machining process that utilizes the principle of electrochemical reactions to remove material
Machining from a workpiece. ECM is used to precisely shape and machine complex parts, especially those made of electrically conductive materials. This
(ECM) process is particularly valuable for intricate shapes, hard materials, and situations where traditional mechanical methods are not effective.
In ECM, the workpiece is the anode, and a tool or electrode is the cathode. They are immersed in an electrolyte solution, which acts as a conductive
medium between them. When an electric current is passed through the electrolyte, controlled chemical reactions occur at the workpiece's surface,
resulting in the dissolution of material from the workpiece. The shape and material removal are determined by the geometry of the tool, the
electrolyte composition, and the current density.
Key features and steps of the ECM process include:
• Electrode Design: The electrode or tool is often made of a specialized material (such as brass, copper, or stainless steel) that allows controlled
dissolution. The electrode's shape corresponds to the desired machined shape. (Source of images:
• Electrolyte: The choice of electrolyte depends on the workpiece material and desired machining characteristics. It should facilitate the desired https://www.norwoodmedical.com/
electrochemical reactions while maintaining stability and efficient ion transport. capabilities/electrochemical-machining)
• Gap Control: The distance between the electrode and the workpiece (electrode gap) is crucial for maintaining uniform material removal.
Special techniques or controls may be used to monitor and adjust this gap.
• Material Removal: As the electrolyte flows between the tool and workpiece and the electric current passes through, material is dissolved from
the workpiece surface. The process is highly controllable and does not create mechanical stresses.
ECM has several advantages:
• High precision and accuracy, allowing for intricate shapes and complex geometries.
• Minimal tool wear, resulting in longer tool life.
• Suitable for hard and brittle materials that are challenging to machine using conventional methods.
• Burr-free and stress-free machining, making it ideal for delicate parts.
• However, ECM also has limitations:
• Limited material removal rates compared to some traditional machining processes.
• Specific equipment and setup requirements.
• Environmental and safety considerations due to the use of electrolytes.
ECM is used in various industries, including aerospace, medical device manufacturing, electronics, and automotive. It is applied to produce
components like turbine blades, medical implants, fuel injector nozzles, and microelectronics with high precision and intricate features.
